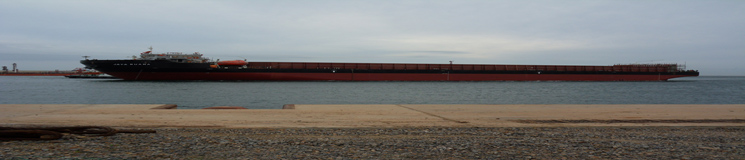

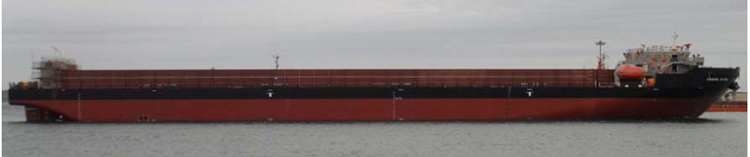

Self Propelled Barge











SHIP PARTICULLAR
NAME OF VESSEL  : MV. JAYA AMARA
PLACE / YEAR BUILT : DALIAN , CHINA / 2011
BUILDER HULL NUMBER JSK-D1006-COC
OWNER : PT JAYA SAMUDRA KARUNIA
CLASS : KR
  + KRS 1 - CARGO SHIP AND DECK CARGO SHIP
  + KRM 1
FLAG : INDONESIA(JAKARTA)
CALL SIGN / MMSI / IMN : POEK / 525 015 919 / 452 502 141
IMO : 9612741
EMAIL / INMARSAT C
: JYA@amosconnect.com / emx.586452502141@aims62.net
TELEPHONE(FB-250)
:
870 773 231 034
PRINCIPAL DIMENSION
LENGTH OVER ALL (LOA) APPROX. : 127 m
LENGTH BETWEEN PERPENDICULAR (LBP) : 120 m
BREDTH : 26 m
DEPT MOLDED (H) : 8 m
DRAFT DESIGN (TD) : 5.5 m
DRAFT SCANTLING : 5.745 m
DRAFT TROPICAL (FW) : 6.008 m
DRAFT TROPICAL (SW) : 5.879 m
DRAFT SUMMER (FW) : 5.888 m
DRAFT SUMMER (SW) : 5.759 m
AIR DRAFT(with tilting) : 18 m
NET TONNAGE : 2953 T
GROSS TONNAGE : 9843 T
LIGHT WEIGHT (LWT) : 3200.4 T
DEADWEIGHT ON Td (DWT Td) APPROX. : 12000 T
DEADWEIGHT ON Ts (DWT Ts) APPROX. : 12900 T
SERVISE SPEED (VS) APPROX. : 10.2 Knots(NCR with 10% S.M)
BALLAST PUMP : 300M2/hr x 2ea (appx. 450 MT/hr)
TPC(SUMMER DRAFT) : 31.4 T
CARGO COAMING VOLUME( L X W X D) : 97.8 X 23.8 X 3.9  8902.3 m3
KEEL TO UPPER DECK : 8 m
UPPER DECK TO COAMING LINE : 4 m
MAIN ENGINE AND SHAFT
MAIN ENGINE  : 2 x 8H21/32P ( Engine No. BA4303 )
MCR : 1600 KW x 900 RPM
REDUCTION GEAR : 2 SET HYUNDAI
POWER SUPPLY
DIESEL GENERATOR : 2 X 200 KW
EMERGENCY GENERATOR : 1 x 80 KW
STEAM GENERATING PLANT
AUX. BOILER : 1 x 500 KG/H
STEERING GER AND PROPULSION
TYPE : 1 x ELECTRO HYD. TYPE
RAM / CYL : 1 RAM / 2 CYL.
CONNECTING : 1 ROD FOR 2 RUDDER
PROPELLER : 2 SET
RUDDER : 2 SET
RADIO : 1 x SOLAS GMDSS A1,A2,A3
TANK CAPACITIES
HFO : 507.7 m3
MDO : 144.5 m3
F. W : 192.8 m3
B.W : 6503 m3
FUEL OIL CINSUMPTION
D.F.O.C at NCR  APPROX. : 12.9 MT/DAY
D.F.O.C AT SERV SPEED APPROX : 12.2 MT/DAY



SHIP PARTICULLAR
NAME OF VESSEL  : MV. JAYA BUANA
PLACE / YEAR BUILT : DALIAN , CHINA / 2011
BUILDER HULL NUMBER JSK-D1007-COC
OWNER : PT JAYA SAMUDRA KARUNIA
CLASS : KR
  + KRS 1 - CARGO SHIP AND DECK CARGO SHIP
  + KRM 1
FLAG : INDONESIA(JAKARTA)
CALL SIGN / MMSI / IMN : POEK / 525 015 919 / 452 502 141
IMO : 9612741
PRINCIPAL DIMENSION
LENGTH OVER ALL (LOA) APPROX. : 127 m
LENGTH BETWEEN PERPENDICULAR (LBP) : 120 m
BREDTH : 26 m
DEPT MOLDED (H) : 8 m
DRAFT DESIGN (TD) : 5.5 m
DRAFT SCANTLING : 5.745 m
DRAFT TROPICAL (FW) : 6.008 m
DRAFT TROPICAL (SW) : 5.879 m
DRAFT SUMMER (FW) : 5.888 m
DRAFT SUMMER (SW) : 5.759 m
AIR DRAFT(with tilting) : 18 m
NET TONNAGE : 2953 T
GROSS TONNAGE : 9843 T
LIGHT WEIGHT (LWT) : 3200.4 T
DEADWEIGHT ON Td (DWT Td) APPROX. : 12000 T
DEADWEIGHT ON Ts (DWT Ts) APPROX. : 12900 T
SERVISE SPEED (VS) APPROX. : 10.2 Knots(NCR with 10% S.M)
BALLAST PUMP : 300M2/hr x 2ea
TPC(SUMMER DRAFT) : 31.4 T
CARGO COAMING VOLUME( L X W X D) : 97.8 X 23.8 X 3.9
KEEL TO UPPER DECK : 8 m
UPPER DECK TO COAMING LINE : 4 m
MAIN ENGINE AND SHAFT
MAIN ENGINE  : 2 x 8H21/32P ( Engine No. BA4303 )
MCR : 1600 KW x 900 RPM
REDUCTION GEAR : 2 SET HYUNDAI
POWER SUPPLY
DIESEL GENERATOR : 2 X 200 KW
EMERGENCY GENERATOR : 1 x 80 KW
STEAM GENERATING PLANT
AUX. BOILER : 1 x 500 KG/H
STEERING GER AND PROPULSION
TYPE : 1 x ELECTRO HYD. TYPE
RAM / CYL : 1 RAM / 2 CYL.
CONNECTING : 1 ROD FOR 2 RUDDER
PROPELLER : 2 SET
RUDDER : 2 SET
RADIO : 1 x SOLAS GMDSS A1,A2,A3
TANK CAPACITIES
HFO : 507.7 m3
MDO : 144.5 m3
F. W : 192.8 m3
B.W : 6503 m3
FUEL OIL CINSUMPTION
D.F.O.C at NCR  APPROX. : 12.9 MT/DAY
D.F.O.C AT SERV SPEED APPROX : 12.2 MT/DAY
